AVMATRIX HVS0402U – 4CH HDMI Streaming Switcher

Opis

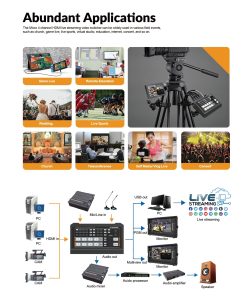

4 channel auto-detected HDMI inputs
1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
AUX output configurable and assignable
USB-C for capturing and streaming on PC
Clearly visible multiview & status page
Upstream key: Luma key, Chroma key, PIP×2/ POP
Downstream key and LOGO overlay
T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
LAN port for PC software remote control
FTB/ MUTE/ STILL/ GPIO for tally
customer configuration import and export

Technical specification:
CONNECTIONS:
• Video In: HDMI type-A x4
• Video Out:
HDMI type-A PGM x1
HDMI type-A Multiview x1
USB 2.0 type-C x1 (Streaming on PC)
Assignale HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview
• Audio In: MIC/ Line x2(3.5mm stereo audio)
• PC Control Port: LAN x1
• Media Libary: USB type-A x1(For image import and firmware upgrade)
• Tally Port: DB-15 x1
• Power In: DC 12V x1

FUNCTIONS:
• Transitions: T-Bar/ AUTO/ CUT
• Effects: WIPE(9×2 patterns)/ MIX/ DIP/ STILL(freeze)/ PATTERN/ MUTE/ FTB
• Layouts: 2 styles of Multiview layout(6 windows and status)
• Keys:
Upstream Key: Luma Key x1/ Chroma Key x1/ PiP x2/ POP
Downsteam Key: DSK x1/ Logo x1
• Audio Mixer:
HDMI x4 and MIC/ Line x2
Audio delay: 0-500ms
• Media Format:
Default image: 49 preset patterns
Local image: Up to 16 imported images
Cature image: UP to 16 captured images
• Generators:
Pattern generator x1
Color generators x2

STANDARDS:
• Hdmi In Format Support:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/25/24
576i 50, 576p 50, 480p 59.94/ 60, 480i 60/59.94
• HDMI PGM Out:
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080i 60/59.94/50
• HDMI Multiview Out:
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080i 60/59.94/50
• HDMI Color Space: RGB/ YUV
• USB Campture Out: MJPG, up to 1080p 60
• Media Format:
USB disk format support: FAT32, Ext3, Ext4, up to 256GB
Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif jps, mpo, tga
Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
Logo size supoprt: 10×10 pixel to 600×600 pixel

OTHERS:
• Power: Wide voltage: 7~24V; Operating power: 12W(12V 1A)
• Dimension (LWD): 244.5 x 143.2 x 44.5mm
• Weight: Net: 1030g; Gross 1500g
• Temperature: Working: -20℃~60℃, Storage: -30℃~70℃
• Accessories: Power supply(12V 2A) x1; USB cable(type A-C) x1; Tally connector(DB-15) x1
