Cobalt 9990-DEC-MPEG

Opis

Dekoder Cobalt® 9990-DEC-MPEG MPEG4 AVC i MPEG2 z wejściami ASI i IP oraz wyjściami SDI zapewnia wysokowydajne rozwiązanie OpenGear® do dekodowania wideo MPEG-2 i MPEG-4 SD i HD w czasie rzeczywistym. Jego konstrukcja jest praktycznie przyszłościowa i dekoduje tradycyjne formaty wideo, takie jak UDP i RTP (MPEG Transport Stream), a także formaty internetowe i mobilne, takie jak RTMP (Adobe® Flash) i HLS (Apple® HTTP Live Streaming).

9990-DEC-MPEG obsługuje nowsze kamery z wyjściem RTMP i kamery bezpieczeństwa z wyjściem RTSP. Jego konstrukcja o dużej gęstości i niskim poborze mocy pozwala zaoszczędzić na kosztach operacyjnych dzięki zainstalowaniu do 10 kart w 20-gniazdowej obudowie openGear®.

Obsługiwane są strumienie wejściowe IP i DVB-ASI, z wyjściami ASI, DVB-ASI, SDI, HDMI i CVBS (dla strumieni SD) przy użyciu dekodowania MPEG4 AVC lub MPEG2. 9990-DEC-MPEG może dekodować z kilku kodeków audio i zapewnia Dolby® pass-thru. Przetwarzanie SMPTE-2038 umożliwia usuwanie ogólnych pakietów danych pomocniczych SMPTE-2038.

Pełne zdalne sterowanie DashBoard™ przez użytkownika umożliwia dostęp do pełnego statusu i kontroli lokalnie lub przez standardową sieć Ethernet. Dołączony jest również kompletny SNMP MIB.

FEATURES:
• Comprehensive MPEG decoding solution – MPEG4 AVC and MPEG2 to ASI, SDI, HDMI and CVBS with built-in audio codecs. Up to two DA SDI BNC outputs. Convenience IP output also.
• IP reception of unicast or multicast
• DVB-ASI Turnaround to IP and ASI with SPTS Splitting
• Supports RTMP and RTSP sources
• MPEG-1 Layer II, AAC -LC, AAC-HE, E-AC-3 and AC-3 audio codecs standard (Dolby pass-thru; Dolby decode option available)
• SMPTE-2038 processing allows de-embedding SMPTE-2038 generic ancillary data packets
• Support for RTP/ARQ interoperability with +RTP/ARQ Cobalt Encoder option. (Decoder +ARQ license included standard.)
• Support for selecting desired video PID in multi-angle streams
• Several options available for scalable configuring
• SNMP MIB included
• Low-power/high-density design
• Remote control/monitoring via Dashboard™ software
• Hot-swappable
• Five year warranty

OPTION:
Note:
• Options denoted as „+” are software-based options which are available on new product when
'ordered or can be customer field-installed as a software upload upgrade.
• Options or ordering line items denoted as “-“ are hardware-based options/items. These options are
'available as factory-installed only on new product, or product returned to Cobalt for
'factory installation.

Dolby® Decode License (+DEC-DDEC) – Allows Dolby audio to be decoded as SDI embedded PCM audio or analog audio output

SMPTE 2022 Forward Error Correction License (+FEC-DEC)

IP IN License (+IP-IN) – Enables IP Port and IP Protocols for IP-to-SDI conversion (no cost with card purchase)

Monitoring License (+TSMON) – Adds continuous monitoring of current transport stream being decoded. Provides a list of all PIDs available in the transport stream, their current individual bit rates, and keeps numerical track of any continuity counter errors. Can also be configured to watch up to 8 PIDs and issue an alarm if PID disappears for a configurable amount of time. (If SNMP is available, this alarm is also provided as a trap.)

Genlock License (+GENLOCK)

IP Out License (+IP-OUT) – ASI-to-IP conversion option (If host card has +FEC-DEC license, card will also be able to generate FEC on the output stream)

RTMP Server License Option (+DEC-RTMP-SVR)

Automatic Repeat Request, Error Correction Assigned For Live Video Over IP / Internet Based on the Reliable Internet Streaming Transport (RIST) Standard (+RIST/ARQ-DEC)

SRT Support (per unit) (+SRT-DEC)

RIST Encryption/Authentication Support (per unit). (Requires the +RIST/ARQ-DEC license to also be present on the decoder.) (+RIST/ENCRP-DEC)

To see more about the Reliable Internet Streaming Transport (RIST) protocol and RIST options available for this model, see RIST Reliable Internet Streaming Transport .

SPECIFICATIONS:
Power
< 8 Watts

Inputs
(1) DVB-ASI 75Ω BNC
(1) IP; 1000Base-T RJ-45
Gen lock (from frame ref 1/2)

Outputs
Up to (2) HD/SD-SDI 75Ω BNC (4:2:2 10-bit; dual SDI outputs available only on Rev 2 or higher hardware)

(1) HDMI
(1) CVBS 75Ω BNC
(1) DVB-ASI 75Ω BNC
(2) Analog Audio Out L/R (balanced 3-pin terminals or unbal RCA depending on rear module used)

Network Transport Protocols
UDP (Unicast or Multicast)
RTP (Unicast or Multicast)
RTMP Client or Server (Adobe Flash)
RTSP (Security Camera)
SMPTE 2022 Pro-MPEG-FEC
ARQ
HTTP Live Streaming (HLS) client

Video Resolution
3G*:
1920 x 1080p – 50/59.94/60
HD:
1920 x 1080i – 50/59.94/60
720 x 1280p – 50/59.94
SD:
480 x 720 – 29.97
576 x 720 – 25

Video Codec Supported
MPEG-2
H.264 4:2:0 High Profile

Audio Codec Supported/Processing
MPEG-1 Layer 2 (mp2)
AAC-LC
HE-AAC
AC-3, E-AC-3 (Dolby® pass-thru)

*These resolutions are only available with HDMI output.

REAR MODULES:

RM20-9990DECMPEG-B

• (1) ASI In BNC
• (1) ASI Out BNC
• (1) SDI Out BNC
• (2) Analog Audio Out (L/R pair; balanced)
• (1) CVBS Out BNC
• (1) HDMI Out
• (1) GigE Ethernet Port

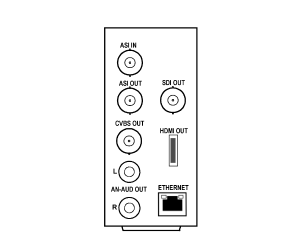

RM20-9990DECMPEG-C

• (1) ASI In BNC
• (1) ASI Out BNC
• (1) SDI Out BNC
• (2) Analog Audio Out (L/R pair; RCA unbalanced)
• (1) CVBS Out BNC
• (1) HDMI Out
• (1) GigE Ethernet Port

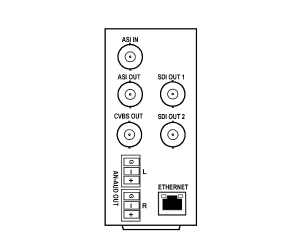

RM20-9990DECMPEG-D

• (1) ASI In BNC
• (1) ASI Out BNC
• (2) SDI Out BNC
• (2) Analog Audio Out (L/R pair; balanced)
• (1) CVBS Out BNC
• (1) GigE Ethernet Port

Note: Rear module compatible only with
rev 2 or higher card hardware.

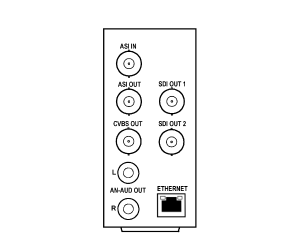

RM20-9990DECMPEG-E

• (1) ASI In BNC
• (1) ASI Out BNC
• (2) SDI Out BNC
• (2) Analog Audio Out (L/R pair; RCA unbalanced)
• (1) CVBS Out BNC
• (1) GigE Ethernet Port

Note: Rear module compatible only with
rev 2 or higher card hardware.

ORDERING INFORMATION:
9990-DEC-MPEG MPEG4 AVC and MPEG2 Decoder with ASI and IP Inputs and SDI Outputs

Rear Modules:
RM20-9990DEC-B 20-Slot Frame Rear I/O Module (Standard Width) (1) RJ-45 Ethernet connector, (1) ASI Input BNC, (1) ASI Output BNC, (1) 3G/HD/SD-SDI Output BNC, (1) CVBS Output BNC, (1) HDMI Output, (2) Balanced Analog Audio Outputs
RM20-9990DEC-C 20-Slot Frame Rear I/O Module (Standard Width) (1) RJ-45 Ethernet connector, (1) ASI Input BNC, (1) ASI Output BNC, (1) 3G/HD/SD-SDI Output BNC, (1) CVBS Output BNC, (1) HDMI Output, (2) Unbalanced Analog Audio Outputs (RCA)
RM20-9990DEC-D 20-Slot Frame Rear I/O Module (Standard Width) (1) RJ-45 Ethernet connector, (1) ASI Input BNC, (1) ASI Output BNC, (2) 3G/HD/SD-SDI Output BNC, (1) CVBS Output BNC, (2) Balanced Analog Audio Outputs (RM20-9990DEC-D compatible only with rev 2 or higher card hardware)
RM20-9990DEC-E 20-Slot Frame Rear I/O Module (Standard Width) (1) RJ-45 Ethernet connector, (1) ASI Input BNC, (1) ASI Output BNC, (2) 3G/HD/SD-SDI Output BNC, (1) CVBS Output BNC, (2) Unbalanced Analog Audio Outputs (RCA) (RM20-9990DEC-E compatible only with rev 2 or higher card hardware)

Options:
+DEC-DDEC Dolby® Decode License Option
+FEC-DEC SMPTE 2022 Forward Error Correction License Option
+GENLOCK Genlock License Option
+IP-IN IP In License Option (no cost with card purchase)
+IP-OUT ASI-to-IP Conversion License Option
+TSMON Monitoring License Option
+DEC-RTMP-SVR RTMP Server License Option
+SRT-DEC SRT Support License Option
+RIST/ARQ-DEC Automatic Repeat Request License, Error Correction Assigned For Live Video Over
IP / Internet Based on the Reliable Internet Streaming Transport (RIST) Standard
+RIST/ENCRP-DEC RIST Encryption/Authentication Support (per unit). (Requires the +RIST/ARQ-DEC
license to also be present on the decoder.)
